Air Respirator

Honeywell Air Respirator

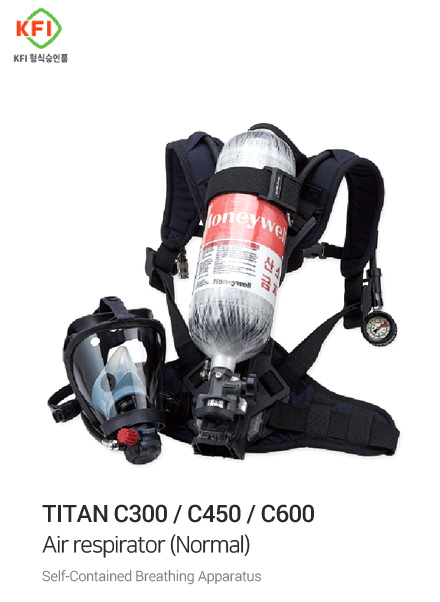

The Honeywell TITAN C Series air respirator has been manufactured and tested by many firefighters, with emphasis on durability, comfort, and functionality that firefighters consider as the three most important elements of an air respirator. The TITAN C Series is ergonomically designed to be light and easy to use, taking into account the handling characteristics of most users. The face is smooth, easy to disassemble and assemble, and has been developed in three sizes: large, medium and small. The compact supply valve does not obstruct the field of view, and the double locking device prevents abnormal detachment, allowing the user to remove the supply valve with one hand even in an emergency situation. In addition, the residual pressure warning flasher (VAD) of the TITAN C Series respirator has been explosion-proof certified for improved safety.

Specification

사양 표
Division C300 C450 C900
Item 7kg or less 9kg or less 11 kg or less
Operating time (at 40 L / min) About 30 minutes About 45 minutes About 60 minutes
Use Temperature -20℃ ~ 60℃
Exhaust resistance 71.4mmH2O or less
Viewing angle 230℃ or more
Cylinder material Carbon Composite Cylinder (TYPE3)
Charging capacity Approximately 4.7L Approximately 6.8L Approximately 9.2L
Maximum filling air volume Approximately 1,457L Approximately 2,040L Approximately 2,852L
Working pressure (FP) Approximately 310bar Approximately 300bar Approximately 310bar
Test pressure (TP) Approximately 517bar Approximately 500 bar Approximately 517bar
Back PC
Harness Nomex
Mask Silicone, PC
Safety certificate Korea Fire Industry Technology Institute (KFI) Type Approval Product
Korea Gas Safety Corporation certified product (Cylinder)

TITAN C Series Basic Features

Explosion-proof certification flasher that displays the residual pressure in the container and the low voltage of the battery (VAD: Visual Alarm Display) Exib IIB T4

It is possible to disassemble and assemble the surface without the use of tools, and it is easy to clean and repair.Select one of the optional silicone and aramid harness.1 Select one of S, M, L size (C450, C600).

Explosion-proof certification flasher that displays the residual pressure in the container and the low voltage of the battery (VAD: Visual Alarm Display) Exib IIB T4

Reinforced nomax handle for convenient air transport

Front reflective strip for easy identification in the dark and shoulder strap for fastening accessories

Ergonomic harness design and lightweight construction design with minimal exposure to high pressure hoses

Options
