Foam Fire Extinguishing Agent
NKFS AFFF 3%
Product Features
■ Blocks oxygen by quickly applying over oil
■ It suppresses oil vapor and forms an aqueous film to extinguish asphyxiation
■ Excellent preparation for re-ignition after extinguishing
■ Excellent fire extinguishing performance against most oil fires (Class B fires), double action of foam and aqueous film
Product type and application
| NKFS-AFFF 3% | Forms and properties of general aqueous membranes -> Applied to most oil fires, used to extinguish fires in oil tanks, petrochemical complexes, etc. |
|---|---|
| NKFS-AFFF 3% ICAO C | Product applied with the standards of the International Civil Aviation Organization (ICAO) LEVEL C -> Mainly used in airport fire brigade, and can be used for fire in general oil storage tank |
Physical properties
※ You can check by swiping the table left or right (swipe).
| Item | NKF AFFF 3% | NKF AFFF LT 3% | NKF AFFF3% ICAO C | |
|---|---|---|---|---|
| Physical properties | type | 3% | 3% | 3% |
| specific gravity(20℃) | 1.03 | 1.045 | 1.03 | |
| Color | Light yellow | Light yellow | Light yellow | |
| PH(20℃) | 7.0 ~ 8.0 | 7.0 ~ 8.0 | 7.0 ~ 8.0 | |
| Viscosity(20℃, cSt) | 5~7 cSt | 7~12 cSt | 5~8 cSt | |
| Storage temperature | -10℃~30℃ | -20℃~30℃ | -10℃~50℃ | |
| Expansion ratio | > 5 times | > 5 times | > 5 times | |
| Keep closed during storage | 15 years | 15 years | 15 years | |
| Approval | Korea Fire Institute(KFI) | Form 16-3 | Form 16-7 | Form 20-11 |
| Packing | - | 1000L(IBC), 200L(Drum), 20L(Pail) | ||
| Application standard | - | Technical standards for extinguishing agent type approval and product inspection | Technical standards for extinguishing agent type approval and product inspection & ICAO LEVEL C | |
* Please note that the viscosity value has a viscosity difference based on the measuring spindle rpm, and the result value may vary depending on the spindle type.

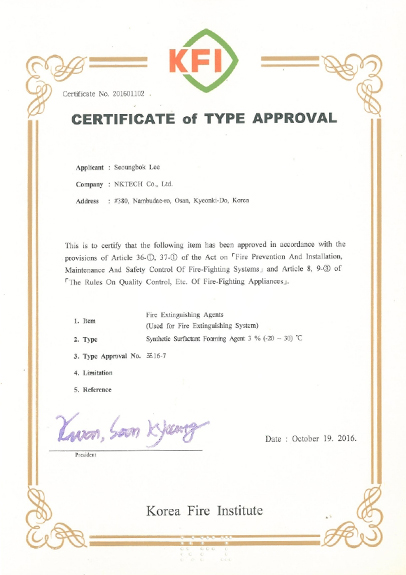

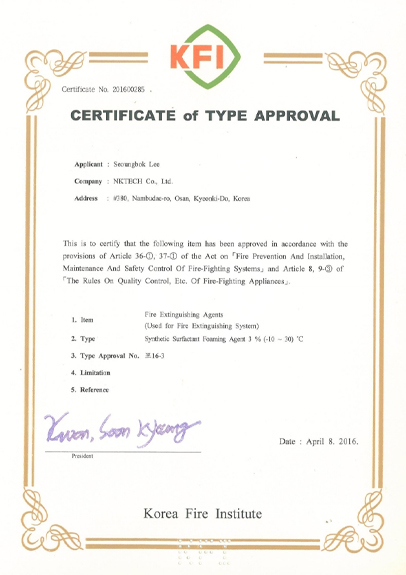

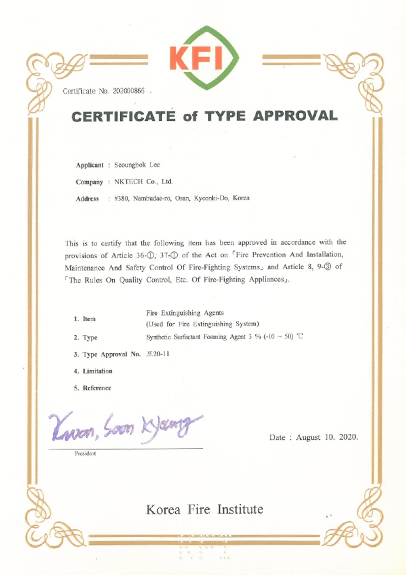

Certification
